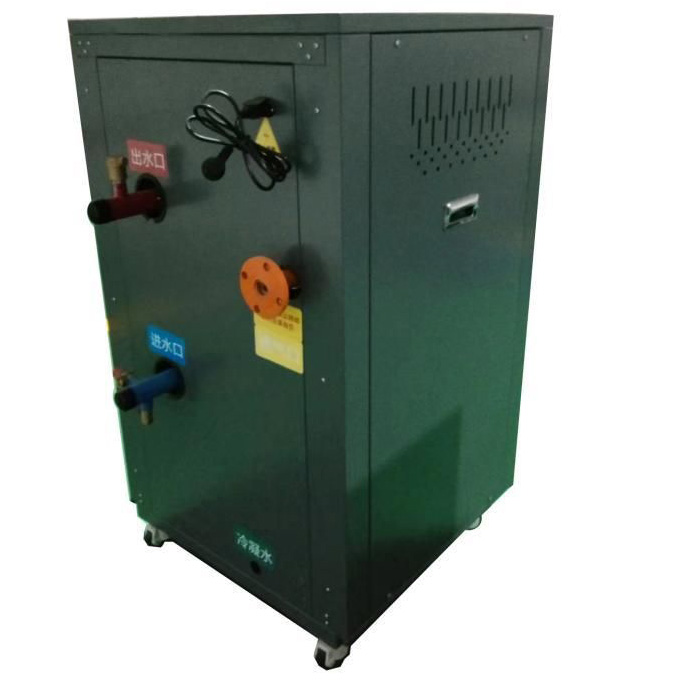

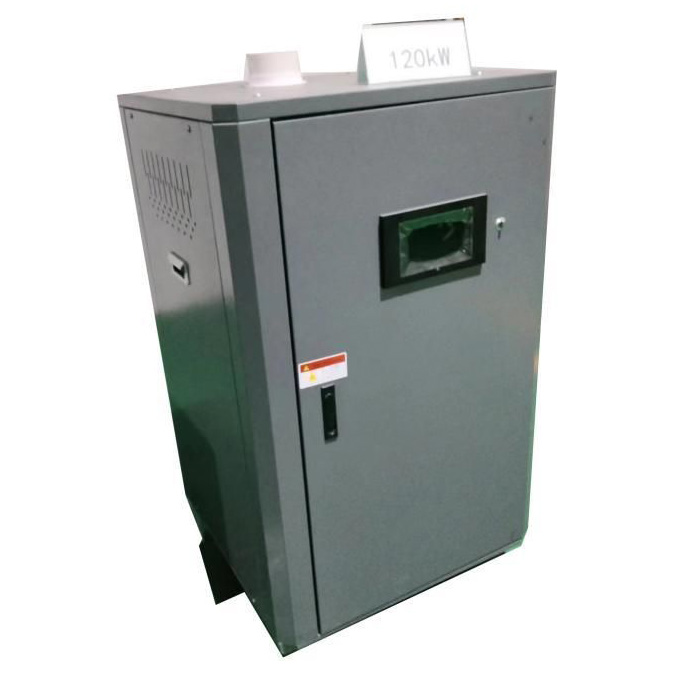

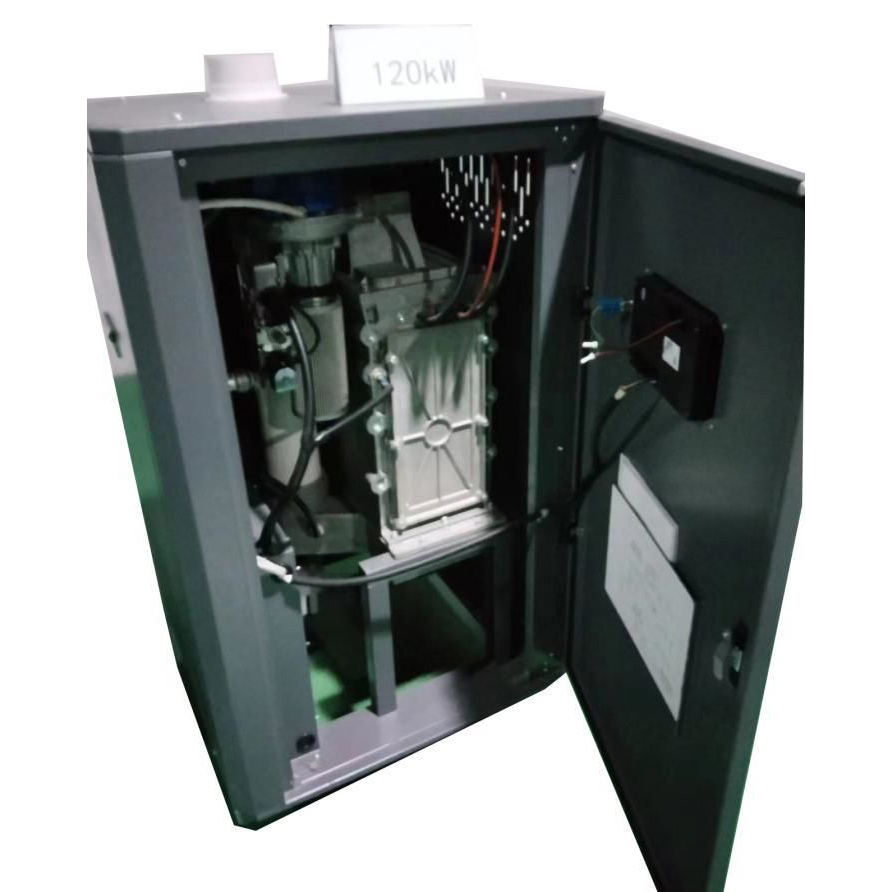

COMMERCIAL PURPOSE FULLY PREMIXED SMALL SIZE LOW NITROGEN CONDENSING FLOOR-STANDING GAS-FIRED BOILER

Short Description:

  • Power model: 60KW,80KW,99KW,120KW
  • Installation: Floor-Standing
  • Fuel: Natural Gas
  • Technology: Fully premixed,Low nitrogen, Condensing

Share
Details
Tags

Product Advantage


High efficiency: maximum thermal efficiency >109%; The current national level 1 energy efficiency standard is 94%.
Environmental protection: ultra-low carbon monoxide CO, NOx emissions, more clean and environmental protection, meet the latest boiler emission standards of Beijing in 2017.
Reliable: using the world's top accessories, in line with European quality
Intelligent: use the controller originally imported from the United States to ensure stable operation and realize unattended; Outdoor climate compensation control; Modular and group control technologies bring more than 15% energy saving and realize multiple stand-by.
Wide temperature range of hot water supply:30℃~85℃
Wide adaptability: modular combination mode, various specifications of a condensing boiler are available.
Small occupation area: compact structure, small volume, light weight. The boiler adopts a wheeled base, which is convenient for transportation; it is suitable for the replacement of old boilers.

Product Brief Introduction


⬤Power model: 60kW, 80kW, 99kW, 120kW

⬤Variable frequency regulation:15%~100% step-less frequency conversion adjustment

⬤High efficiency and energy saving: efficiency up to 108%;

⬤Low nitrogen environmental protection: NOx emission as low as 30mg/m³ (standard working condition);

⬤Material: cast silicon aluminum host heat exchanger, high efficiency, strong corrosion-resistance;

⬤Space advantage: compact structure; Small volume; Lightweight; Easy to install

⬤Stable operation: the use of advanced imported accessories to ensure safe and reliable operation;

⬤Intelligent comfort: unattended, accurate temperature control, make heating more comfortable;

⬤Long service life: the core components such as the Cast silicon aluminum are designed to last more than 20 years

Product main technique data




Technical  Data

Unit

Produce Model&Specification

GARC-LB60

GARC-LB80

GARC-LB99

GARC-LB120

Rated heat output

kW

60

80

99

120

Max. air consumption at rated thermal power

m3/h

6.0

8.0

9.9

12.0

Hot water supply capability(△t=20℃)

m3/h

2.6

3.5

4.3

5.2

Maximum  water  flow

m3/h

5.2

7.0

8.6

10.4

Mini./Max. water system pressure

bar

0.2/3

0.2/3

0.2/3

0.2/3

Max. outlet water temperature

90

90

90

90

Thermal efficiency at max. load 80°C~60°℃

%

96

96

96

96

Thermal efficiency at max. load 50°C~30°℃

%

103

103

103

103

Thermal efficiency at 30% load(outlet water temperature 30°C)

%

108

108

108

108

CO Emissions

ppm

<40

<40

<40

<40

NOx Emissions

mg/m3

<30

<30

<30

<30

Type of gas supply



12T

12T

12T

12T

Gas pressure(dynamic pressure)

kPa

3~5

3~5

3~5

3~5

Size of gas interface



DN25

DN25

DN25

DN25

Size of outlet water interface



DN32

DN32

DN32

DN32

Size of return water interface



DN32

DN32

DN32

DN32

Size of condensate outlet interface



DN15

DN15

DN15

DN15

Diameter of smoke outlet

mm

110

110

110

110

Length of the gas-fired floor-standing boiler

mm

720

720

720

720

Width of the gas-fired floor-standing boiler

mm

700

700

700

700

Height of the gas-fired floor-standing boiler

mm

1220

1220

1220

1220

Net weight of the boiler

kg

165

185

185

185

Power source required

V/Hz

230/50

230/50

230/50

230/50

Noise

dB

<50

<50

<50

<50

Electric  power  consumption

W

300

300

300

300

Reference  heating  area

m2

700

900

1100

1300

The application site of The boiler


wps_doc_4 CSA (1) CSA (3)
CSA (4) CSA (7)
CSA (8) CSA (6)

The heating circulation system of the panel radiator and floor heating

CSA (2)
