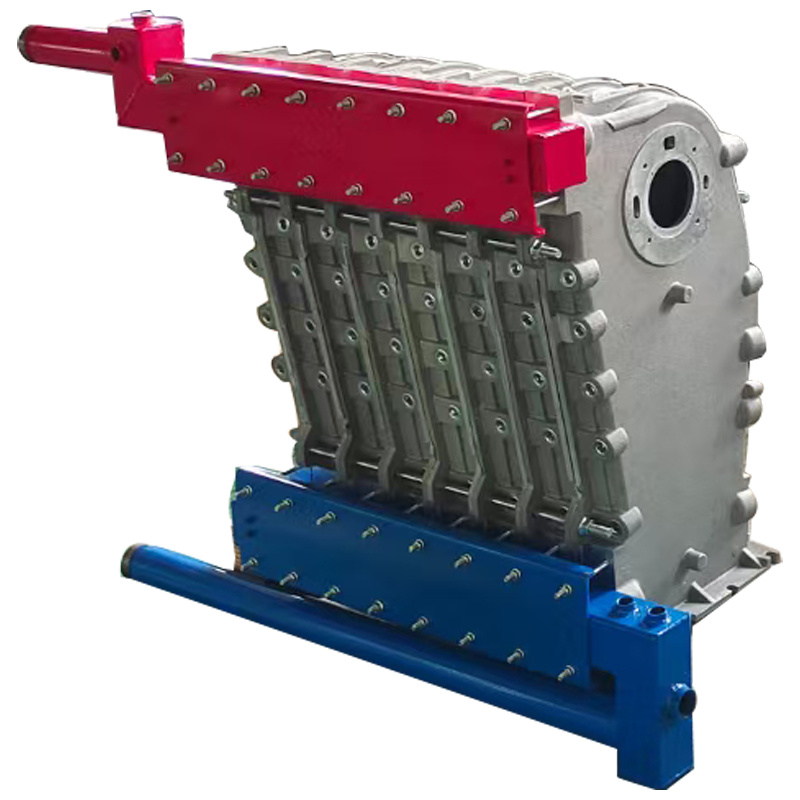

fully premixed cast silicon aluminum heat exchanger for commercial boiler(M type)

Short Description:

Product Specification: 150KW, 200KW, 240KW, 300KW, 350KW;
Compact structure, high density, and high strength；
Separate detachable water channel;
Thermal conductive fin column design, strong heat exchange capacity;
Unique water channel design with low resistance;
Cast from silicon aluminum magnesium alloy, High heat exchange efficiency, strong corrosion resistance, economical and durable.

CONTACT NOW PDF DOWNLOAD

Details

Product Details:

The main technical parameters of the M type inblock casting Silicon Aluminum Magnesium Alloy heat exchanger M

Technical Data/Model		unit	GARC-AL150	GARC-AL200	GARC-AL240	GARC-AL300	GARC-AL350
Maximum Rated Heat Input		KW	150	200	240	300	350
Maximum outlet water temperature		℃	80	80	80	80	80
Min/Max water system pressure		Bar	0.2/3	0.2/3	0.2/3	0.2/3	0.2/3
hot water supply capacity		m3/h	6.5	8.6	10.3	12.9	15.1
maximum water flow		m3/h	13.0	17.2	20.6	25.8	30.2
flue-gas temperature		℃	<70	<70	<70	<70	<70
flue-gas temperature		℃	<45	<45	<45	<45	<45
Maximum Condensate Displacement		L/h	12.8	17.1	20.6	25.7	30.0
Condensate water PH value		-	4.8	4.8	4.8	4.8	4.8
Diameter of flue interface		mm	150	200	200	200	200
Water supply and return interface size		-	DN50	DN50	DN50	DN50	DN50
Heat exchanger Overall size	L	mm	347	432	517	602	687
	W	mm	385	385	385	385	385
	H	mm	968	968	968	968	968

Product Description:

The special cast silicon-aluminum heat exchanger for commercial condensing low-nitrogen gas-fired boilers produced by Lanyan Hi-Tech is made of silicon-aluminum alloy, which has high heat exchange efficiency, corrosion resistance, durability and high hardness. It is suitable for to be the main heat exchanger of commercial condensing gas boilers with rated heat load below 2200kW.
The product adopts low pressure casting process, and the product forming rate is higher than that of similar products at home and abroad. There is a detachable cleaning port on the side. In addition, the flue gas condensation heat exchange area adopts the company's patented coating material, which can effectively prevent the accumulation of ash and carbon.

Technical Principle:

Blue flame high tech condensing cast silicon aluminum main heat exchanger is of cast silicon aluminum structure, integrating combustion chamber, flue and water channel. Cast aluminum heat exchanger has good corrosion resistance. In a limited volume, rib columns are used to increase the heat exchange area. The combustion chamber and water outlet are located above the main heat exchanger, and the water inlet is located at the bottom. The temperature of the water flow gradually increases from bottom to top, and the temperature of the flue gas gradually decreases from top to bottom. The reverse flow ensures that all points in the heat exchanger can carry out sufficient heat exchange, absorb the sensible heat and most of the latent heat of water vapor in the flue gas, effectively reduce the flue gas temperature, and saturate and precipitate the water vapor in the flue gas, so as to achieve the purpose of high efficiency, energy conservation and environmental protection.

The Development and Production of the Silicon Aluminum Heat Exchanger:

Inblock Cast Silicon Magnesium Aluminum Alloy Heat Exchanger

The special cast silicon aluminum heat exchanger for commercial condensing low nitrogen gas boiler is cast from silicon aluminum magnesium alloy, with high heat exchange efficiency, corrosion resistance, durability and high hardness. It is applicable to the main heat exchanger of commercial condensing gas boiler with rated heat load below 2100 kW.

The product adopts low-pressure casting process, and the molding rate of the product is higher than that of similar products at home and abroad. A removable cleaning opening is set on the side. In addition, the flue gas condensation heat exchange area adopts the company's patented coating material, which can effectively prevent ash and carbon deposition.

28Kw~46Kw Heat Exchanger

60Kw~120Kw Heat Exchanger

150Kw~350Kw Heat Exchanger

cvdscv

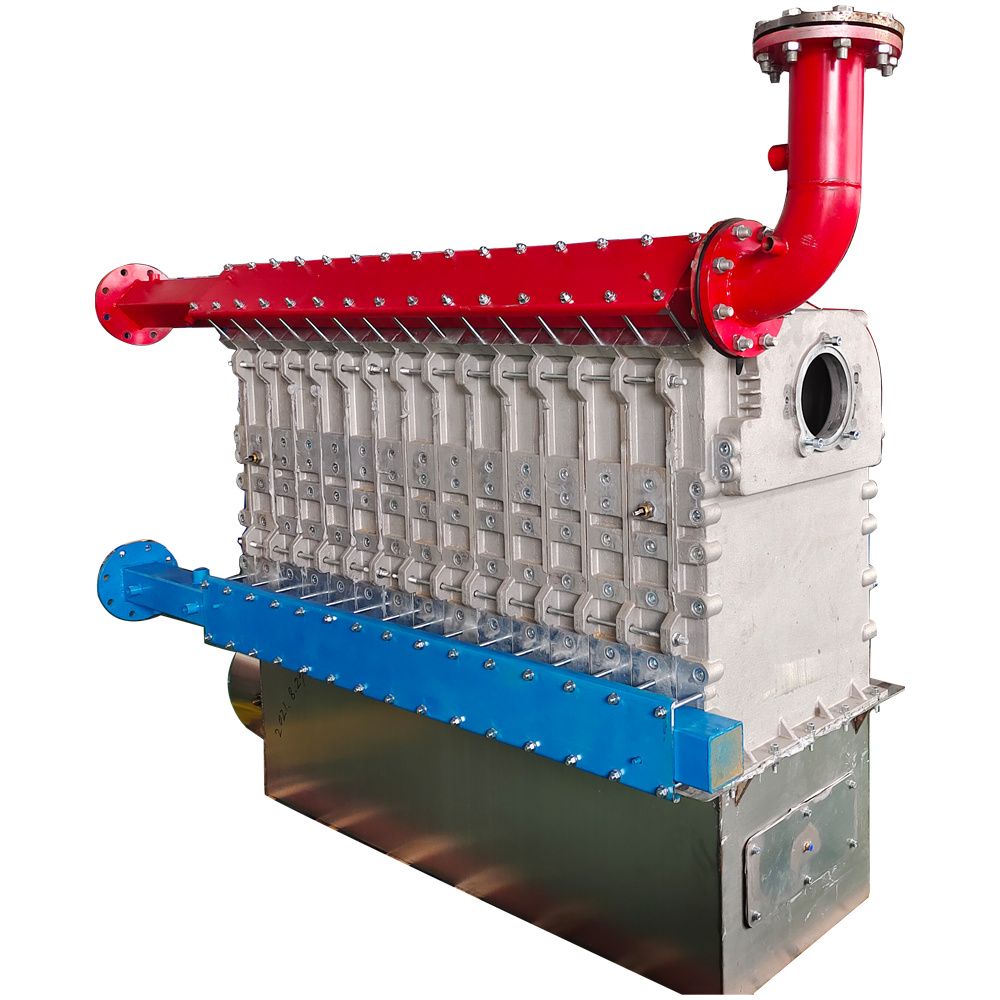

1100Kw~1400Kw Heat Exchanger

dsad

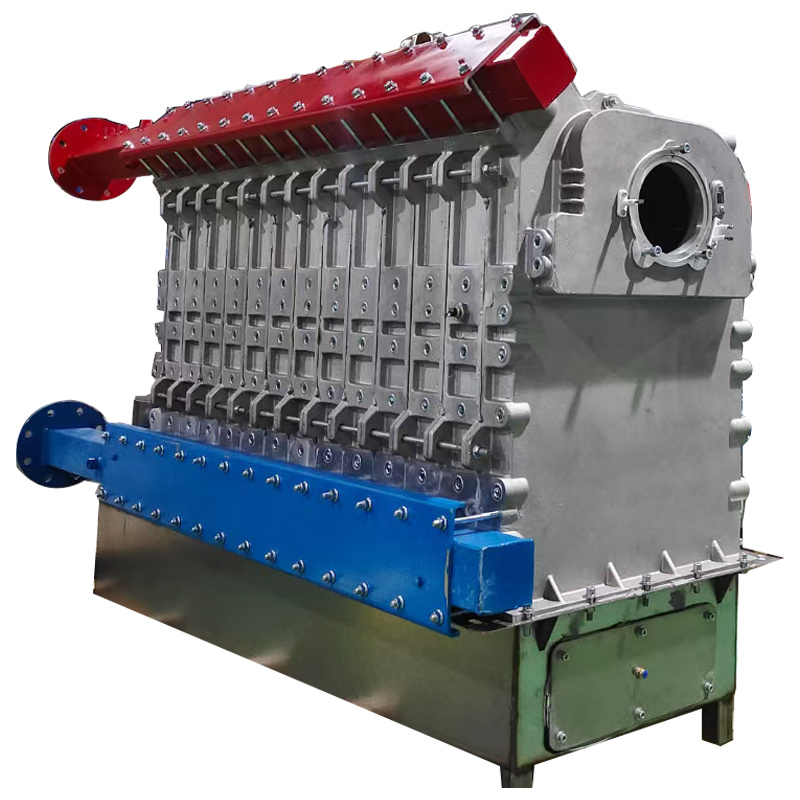

1100Kw~1400Kw Heat Exchanger
